自编译Tl-wr886n-v5的OpenWrt固件

在讲解固件刷入板块时，我们就曾经讲过WR886N-V5刷OpenWrt固件的方法，当时我们采用的固件是TL-WR940N-V4的二次编译版本。今天我们讲解自编译Tl-wr886n-v5的OpenWrt固件时，我们准备采用添加新设备的方式来生成属于Tl-wr886n-v5自己的固件。

英文版参考资料：https://openwrt.org/docs/guide-developer/adding_new_device

自编译环境：OpenWrt的官方源码，版本号为v18.06.9（目前Tl-wr940n-v4官方能支持的最高版本）

那接下来我们计划将整个过程完完整整地呈现给大家，供大家参考！

一、获取需要修改的文件列表

grep -lri wr940 target/

target/linux/ar71xx/base-files/etc/diag.sh
target/linux/ar71xx/base-files/etc/board.d/01_leds
target/linux/ar71xx/base-files/etc/board.d/02_network
target/linux/ar71xx/base-files/lib/preinit/05_set_preinit_iface_ar71xx
target/linux/ar71xx/base-files/lib/ar71xx.sh
target/linux/ar71xx/base-files/lib/upgrade/platform.sh
target/linux/ar71xx/image/tiny-tp-link.mk
target/linux/ar71xx/config-4.9
target/linux/ar71xx/tiny/config-default
target/linux/ar71xx/files/arch/mips/ath79/machtypes.h
target/linux/ar71xx/files/arch/mips/ath79/mach-tl-wr940n-v4.c
target/linux/ar71xx/files/arch/mips/ath79/Kconfig.openwrt
target/linux/ar71xx/files/arch/mips/ath79/Makefile

二、对照列表文件逐一修改

1、~/target/linux/ar71xx/base-files/etc/diag.sh

tl-wr810n-v2|\
tl-wr940n-v4|\
tl-wr941nd-v6)
    status_led="tp-link:blue:system"
    ;;

查询到 tl-wr940n-v4行，在上一行添加 tl-wr886n-v5|\

tl-wr810n-v2|\
tl-wr886n-v5|\
tl-wr940n-v4|\
tl-wr941nd-v6)
    status_led="tp-link:blue:system"
    ;;

2、~/target/linux/ar71xx/base-files/etc/board.d/01_leds

tl-wr940n-v4|\
tl-wr941nd-v6)
    ucidef_set_led_netdev "wan" "WAN" "tp-link:blue:wan" "eth0"
    ucidef_set_led_switch "lan1" "LAN1" "tp-link:blue:lan1" "switch0" "0x10"
    ucidef_set_led_switch "lan2" "LAN2" "tp-link:blue:lan2" "switch0" "0x08"
    ucidef_set_led_switch "lan3" "LAN3" "tp-link:blue:lan3" "switch0" "0x04"
    ucidef_set_led_switch "lan4" "LAN4" "tp-link:blue:lan4" "switch0" "0x02"
    ucidef_set_led_wlan "wlan" "WLAN" "tp-link:blue:wlan" "phy0tpt"
    ;;

查询到 tl-wr940n-v4行，在上一行添加 tl-wr886n-v5|\

tl-wr886n-v5|\
tl-wr940n-v4|\
tl-wr941nd-v6)
    ucidef_set_led_netdev "wan" "WAN" "tp-link:blue:wan" "eth0"
    ucidef_set_led_switch "lan1" "LAN1" "tp-link:blue:lan1" "switch0" "0x10"
    ucidef_set_led_switch "lan2" "LAN2" "tp-link:blue:lan2" "switch0" "0x08"
    ucidef_set_led_switch "lan3" "LAN3" "tp-link:blue:lan3" "switch0" "0x04"
    ucidef_set_led_switch "lan4" "LAN4" "tp-link:blue:lan4" "switch0" "0x02"
    ucidef_set_led_wlan "wlan" "WLAN" "tp-link:blue:wlan" "phy0tpt"
    ;;

3、~/target/linux/ar71xx/base-files/etc/board.d/02_network

tl-wdr6500-v2|\
tl-wr940n-v4|\
tl-wr940n-v6|\
tl-wr941nd-v6|\
wnr1000-v2|\
wnr2000-v4|\
wnr2200|\
wnr612-v2|\
wpn824n)
    ucidef_set_interfaces_lan_wan "eth1.1" "eth0"
    ucidef_add_switch "switch0" \
        "0@eth1" "1:lan:1" "2:lan:2" "3:lan:3" "4:lan:4"
    ;;

查询到 tl-wr940n-v4行，注意这里需要修改并新增 tl-wr886n-v5 的相关信息

tl-wdr6500-v2|\
tl-wr940n-v4|\
tl-wr940n-v6|\
tl-wr941nd-v6|\
wnr1000-v2|\
wnr2000-v4|\
wnr2200|\
wnr612-v2|\
wpn824n)
    ucidef_set_interfaces_lan_wan "eth1.1" "eth0"
    ucidef_add_switch "switch0" \
        "0@eth1" "1:lan:1" "2:lan:2" "3:lan:3" "4:lan:4"
    ;;
tl-wr886n-v5)
    ucidef_set_interfaces_lan_wan "eth1.1" "eth0"
    ucidef_add_switch "switch0" \
        "0@eth1" "1:lan:4" "2:lan:3" "3:lan:2" "4:lan:1"
    ;;

4、~/target/linux/ar71xx/base-files/lib/preinit/05_set_preinit_iface_ar71xx

tl-wr842n-v2|\
tl-wr940n-v4|\
tl-wr941nd-v6|\
wnr1000-v2|\
wnr2000-v3|\
wnr2200|\
wnr612-v2|\
wpe72|\
wpn824n)
    ifname=eth1
    ;;

查询到 tl-wr940n-v4行，在上一行添加 tl-wr886n-v5|\

tl-wr842n-v2|\
tl-wr886n-v5|\
tl-wr940n-v4|\
tl-wr941nd-v6|\
wnr1000-v2|\
wnr2000-v3|\
wnr2200|\
wnr612-v2|\
wpe72|\
wpn824n)
    ifname=eth1
    ;;

5、~/target/linux/ar71xx/base-files/lib/ar71xx.sh

"094000"*)
    model="TP-Link TL-WR940N"
    ;;

查询到 wr940n 相关信息行，添加 wr886n 的信息

"088600"*)
    model="TP-Link TL-WR886N"
    ;;
"094000"*)
    model="TP-Link TL-WR940N"
    ;;

还有以下的 tl-wr940n-v4 相关信息行

*"TL-WR940N v4")
    name="tl-wr940n-v4"
    ;;

也需要依葫芦画瓢，添加 tl-wr886n-v5 的信息

*"TL-WR886N v5")
    name="tl-wr886n-v5"
    ;;
*"TL-WR940N v4")
    name="tl-wr940n-v4"
    ;;

6、~/target/linux/ar71xx/base-files/lib/upgrade/platform.sh

tl-wr902ac-v1|\
tl-wr940n-v4|\
tl-wr940n-v6|\
tl-wr941nd|\
tl-wr941nd-v5|\
tl-wr941nd-v6|\
ts-d084|\
wifi-pineapple-nano)
    local magic_ver="0100"

    case "$board" in
    tl-wdr3320-v2|tl-wdr6500-v2)
        magic_ver="0200"
        ;;

查询到 tl-wr940n-v4行，在上一行添加 tl-wr886n-v5|\

tl-wr902ac-v1|\
tl-wr886n-v5|\
tl-wr940n-v4|\
tl-wr940n-v6|\
tl-wr941nd|\
tl-wr941nd-v5|\
tl-wr941nd-v6|\
ts-d084|\
wifi-pineapple-nano)
    local magic_ver="0100"

    case "$board" in
    tl-wdr3320-v2|tl-wdr6500-v2)
        magic_ver="0200"
        ;;

7、~/target/linux/ar71xx/image/tiny-tp-link.mk

define Device/tl-wr940n-v4
  $(Device/tplink-4mlzma)
  DEVICE_TITLE := TP-LINK TL-WR940N v4
  BOARDNAME := TL-WR940N-v4
  DEVICE_PROFILE := TLWR941
  TPLINK_HWID := 0x09400004
  IMAGES += factory-us.bin factory-eu.bin factory-br.bin
  IMAGE/factory-us.bin := append-rootfs | mktplinkfw factory -C US
  IMAGE/factory-eu.bin := append-rootfs | mktplinkfw factory -C EU
  IMAGE/factory-br.bin := append-rootfs | mktplinkfw factory -C BR
endef
TARGET_DEVICES += tl-wr940n-v4

查询到 tl-wr940n-v4 相关信息行，添加 tl-wr886n-v5 的信息（注：其它无关的语言固件可以删除）

define Device/tl-wr886n-v5
  $(Device/tplink-4mlzma)
  DEVICE_TITLE := TP-LINK TL-WR886N v5
  BOARDNAME := TL-WR886N-v5
  DEVICE_PROFILE := TLWR941
  TPLINK_HWID := 0x08860005
endef
TARGET_DEVICES += tl-wr886n-v5

define Device/tl-wr940n-v4
  $(Device/tplink-4mlzma)
  DEVICE_TITLE := TP-LINK TL-WR940N v4
  BOARDNAME := TL-WR940N-v4
  DEVICE_PROFILE := TLWR941
  TPLINK_HWID := 0x09400004
  IMAGES += factory-us.bin factory-eu.bin factory-br.bin
  IMAGE/factory-us.bin := append-rootfs | mktplinkfw factory -C US
  IMAGE/factory-eu.bin := append-rootfs | mktplinkfw factory -C EU
  IMAGE/factory-br.bin := append-rootfs | mktplinkfw factory -C BR
endef
TARGET_DEVICES += tl-wr940n-v4

8、~/target/linux/ar71xx/config-4.9

# CONFIG_ATH79_MACH_TL_WR841N_V9 is not set
# CONFIG_ATH79_MACH_TL_WR902AC_V1 is not set
# CONFIG_ATH79_MACH_TL_WR940N_V4 is not set

查询到 tl-wr940n-v4 相关信息行，添加 tl-wr886n-v5 的信息

# CONFIG_ATH79_MACH_TL_WR841N_V9 is not set
# CONFIG_ATH79_MACH_TL_WR902AC_V1 is not set
# CONFIG_ATH79_MACH_TL_WR886N_V5 is not set
# CONFIG_ATH79_MACH_TL_WR940N_V4 is not set

9、~/target/linux/ar71xx/tiny/config-default

CONFIG_ATH79_MACH_TL_WR841N_V8=y
CONFIG_ATH79_MACH_TL_WR841N_V9=y
CONFIG_ATH79_MACH_TL_WR940N_V4=y
CONFIG_ATH79_MACH_TL_WR941ND=y

查询到 tl-wr940n-v4 相关信息行，添加 tl-wr886n-v5 的信息

CONFIG_ATH79_MACH_TL_WR841N_V8=y
CONFIG_ATH79_MACH_TL_WR841N_V9=y
CONFIG_ATH79_MACH_TL_WR886N_V5=y
CONFIG_ATH79_MACH_TL_WR940N_V4=y
CONFIG_ATH79_MACH_TL_WR941ND=y

10、~/target/linux/ar71xx/files/arch/mips/ath79/machtypes.h

ATH79_MACH_TL_WR941ND_V6,		/* TP-LINK TL-WR941ND v6 */
ATH79_MACH_TL_WR940N_V4,		/* TP-LINK TL-WR940N v4 */

查询到 tl-wr940n-v4 相关信息行，添加 tl-wr886n-v5 的信息

ATH79_MACH_TL_WR941ND_V6,		/* TP-LINK TL-WR941ND v6 */
ATH79_MACH_TL_WR886N_V5,		/* TP-LINK TL-WR886N v5 */
ATH79_MACH_TL_WR940N_V4,		/* TP-LINK TL-WR940N v4 */

11、~/target/linux/ar71xx/files/arch/mips/ath79/mach-tl-wr940n-v4.c

新建文件 mach-tl-wr886n-v5.c，然后将 mach-tl-wr940n-v4.c 的内容先全部拷贝过去，先将里面 wr940n-v6 特定的内容删除，再将 wr940n-v4 相关内容都一一对应换成wr886n-v5 的。

接下来，非常重要的一步，改变指示灯及按键的GPIO值，wr886n-v5 与 wr940n-v4 的相应值大部分都不一样，都需要改过来，否则路由器的相应功能都是混乱的。

以下是改好以后的 mach-tl-wr886n-v5.c 的文件内容，供大家参考：

/*
 *  TP-LINK TL-WR886N v5 board support
 *
 *  Copyright (C) 2016 David Lutz <kpanic@ff3l.net>
 *
 *  This program is free software; you can redistribute it and/or modify it
 *  under the terms of the GNU General Public License version 2 as published
 *  by the Free Software Foundation.
 */

#include <linux/gpio.h>
#include <linux/platform_device.h>

#include <asm/mach-ath79/ath79.h>
#include <asm/mach-ath79/ar71xx_regs.h>

#include "common.h"
#include "dev-eth.h"
#include "dev-gpio-buttons.h"
#include "dev-leds-gpio.h"
#include "dev-m25p80.h"
#include "dev-wmac.h"
#include "machtypes.h"


#define TL_WR886N_V5_GPIO_LED_WAN		2
#define TL_WR886N_V5_GPIO_LED_LAN4		7
#define TL_WR886N_V5_GPIO_LED_LAN3		6
#define TL_WR886N_V5_GPIO_LED_LAN2		5
#define TL_WR886N_V5_GPIO_LED_LAN1		4
#define TL_WR886N_V5_GPIO_LED_SYSTEM		18
#define TL_WR886N_V5_GPIO_BTN_RESET		1

#define TL_WR886N_KEYS_POLL_INTERVAL		20
#define TL_WR886N_KEYS_DEBOUNCE_INTERVAL	(3 * TL_WR886N_KEYS_POLL_INTERVAL)


static struct gpio_led tl_wr886n_v5_leds_gpio[] __initdata = {

    {
        .name		= "tp-link:blue:wan",
        .gpio		= TL_WR886N_V5_GPIO_LED_WAN,
        .active_low	= 1,
    },

    {
        .name		= "tp-link:blue:lan1",
        .gpio		= TL_WR886N_V5_GPIO_LED_LAN1,
        .active_low	= 1,
    },
    {
        .name		= "tp-link:blue:lan2",
        .gpio		= TL_WR886N_V5_GPIO_LED_LAN2,
        .active_low	= 1,
    },
    {
        .name		= "tp-link:blue:lan3",
        .gpio		= TL_WR886N_V5_GPIO_LED_LAN3,
        .active_low	= 1,
    },
    {
        .name		= "tp-link:blue:lan4",
        .gpio		= TL_WR886N_V5_GPIO_LED_LAN4,
        .active_low	= 1,
    },

    {
        .name		= "tp-link:blue:system",
        .gpio		= TL_WR886N_V5_GPIO_LED_SYSTEM,
        .active_low	= 1,
    },
};

static struct gpio_keys_button tl_wr886n_v5_gpio_keys[] __initdata = {
    {
        .desc		= "Reset button",
        .type		= EV_KEY,
        .code		= KEY_RESTART,
        .debounce_interval = TL_WR886N_KEYS_DEBOUNCE_INTERVAL,
        .gpio		= TL_WR886N_V5_GPIO_BTN_RESET,
        .active_low	= 1,
    },
};

static const char *tl_wr886n_part_probes[] = {
    "tp-link",
    NULL,
};

static struct flash_platform_data tl_wr886n_flash_data = {
    .part_probes	= tl_wr886n_part_probes,
};


static void __init tl_wr886n_setup(void)
{
    u8 *mac = (u8 *) KSEG1ADDR(0x1f01fc00);
    u8 *ee = (u8 *) KSEG1ADDR(0x1fff1000);

    ath79_register_m25p80(&tl_wr886n_flash_data);

    ath79_register_mdio(0, 0x0);

    ath79_init_mac(ath79_eth0_data.mac_addr, mac, 1);
    ath79_init_mac(ath79_eth1_data.mac_addr, mac, -1);

    ath79_switch_data.phy4_mii_en = 1;

    ath79_register_eth(0);
    ath79_register_eth(1);

    ath79_register_wmac(ee, mac);

}

static void __init tl_wr886n_v5_setup(void)
{
    tl_wr886n_setup();

    ath79_register_leds_gpio(-1, ARRAY_SIZE(tl_wr886n_v5_leds_gpio),
                 tl_wr886n_v5_leds_gpio);

    ath79_register_gpio_keys_polled(-1, TL_WR886N_KEYS_POLL_INTERVAL,
                    ARRAY_SIZE(tl_wr886n_v5_gpio_keys),
                    tl_wr886n_v5_gpio_keys);
}

MIPS_MACHINE(ATH79_MACH_TL_WR886N_V5, "TL-WR886N-v5", "TP-LINK TL-WR886N v5",
         tl_wr886n_v5_setup);

12、~/target/linux/ar71xx/files/arch/mips/ath79/Kconfig.openwrt

config ATH79_MACH_TL_WR940N_V4
    bool "TP-LINK TL-WR940N v4 support"
    select SOC_QCA956X
    select ATH79_DEV_ETH
    select ATH79_DEV_GPIO_BUTTONS
    select ATH79_DEV_LEDS_GPIO
    select ATH79_DEV_M25P80
    select ATH79_DEV_WMAC

查询到 tl-wr940n-v4 相关内容，添加 tl-wr886n-v5 的对应内容

config ATH79_MACH_TL_WR886N_V5
    bool "TP-LINK TL-WR886N v5 support"
    select SOC_QCA956X
    select ATH79_DEV_ETH
    select ATH79_DEV_GPIO_BUTTONS
    select ATH79_DEV_LEDS_GPIO
    select ATH79_DEV_M25P80
    select ATH79_DEV_WMAC

config ATH79_MACH_TL_WR940N_V4
    bool "TP-LINK TL-WR940N v4 support"
    select SOC_QCA956X
    select ATH79_DEV_ETH
    select ATH79_DEV_GPIO_BUTTONS
    select ATH79_DEV_LEDS_GPIO
    select ATH79_DEV_M25P80
    select ATH79_DEV_WMAC

13、~/target/linux/ar71xx/files/arch/mips/ath79/Makefile

obj-$(CONFIG_ATH79_MACH_TL_WR941ND_V6)		+= mach-tl-wr941nd-v6.o
obj-$(CONFIG_ATH79_MACH_TL_WR940N_V4)		+= mach-tl-wr940n-v4.o

查询到 tl-wr940n-v4 相关内容，添加 tl-wr886n-v5 的对应内容

obj-$(CONFIG_ATH79_MACH_TL_WR941ND_V6)		+= mach-tl-wr941nd-v6.o
obj-$(CONFIG_ATH79_MACH_TL_WR886N_V5)		+= mach-tl-wr886n-v5.o
obj-$(CONFIG_ATH79_MACH_TL_WR940N_V4)		+= mach-tl-wr940n-v4.o

三、配置及编译

1、先配置（注：建议直接添加luci应用）

rm -rf tmp
touch target/linux/*/Makefile
make menuconfig

2、编译

make -j1 V=s

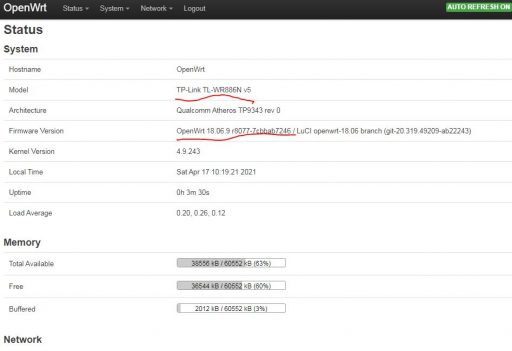

编译完成后，就可以在 ~/bin/targets/ar71xx/tiny 目录下发现固件：openwrt-ar71xx-tiny-tl-wr886n-v5-squashfs-factory.bin

将新生成的固件刷入路由器，具体过程可参考 WR886N-V5刷OpenWrt固件 一文，最终Luci界面如下：

写的够详细了吧，但是你说我没有时间，不想自己编译，我就想拿现成的。OK，你可以给我邮件：hzshw@hz.cn
